Bind Button to Character

December 02, 2017

UE4 Version: 4.18.3

Github Link: https://github.com/Harrison1/unrealcpp/tree/master/CharacterBindButton

For this tutorial we are using the standard first person C++ template with starter content.

In this tutorial let's add an Action button to our character. First we will want to add an input option called Action and bind it to a keyboard input or controller button. In this case we are going to bind the Action input to our keyboard's E key. Go to Edit > Project Settings. Then select the Input option. Click the plus sign next to Action Mappings. Call the new input Action and select E from the dropdown menu.

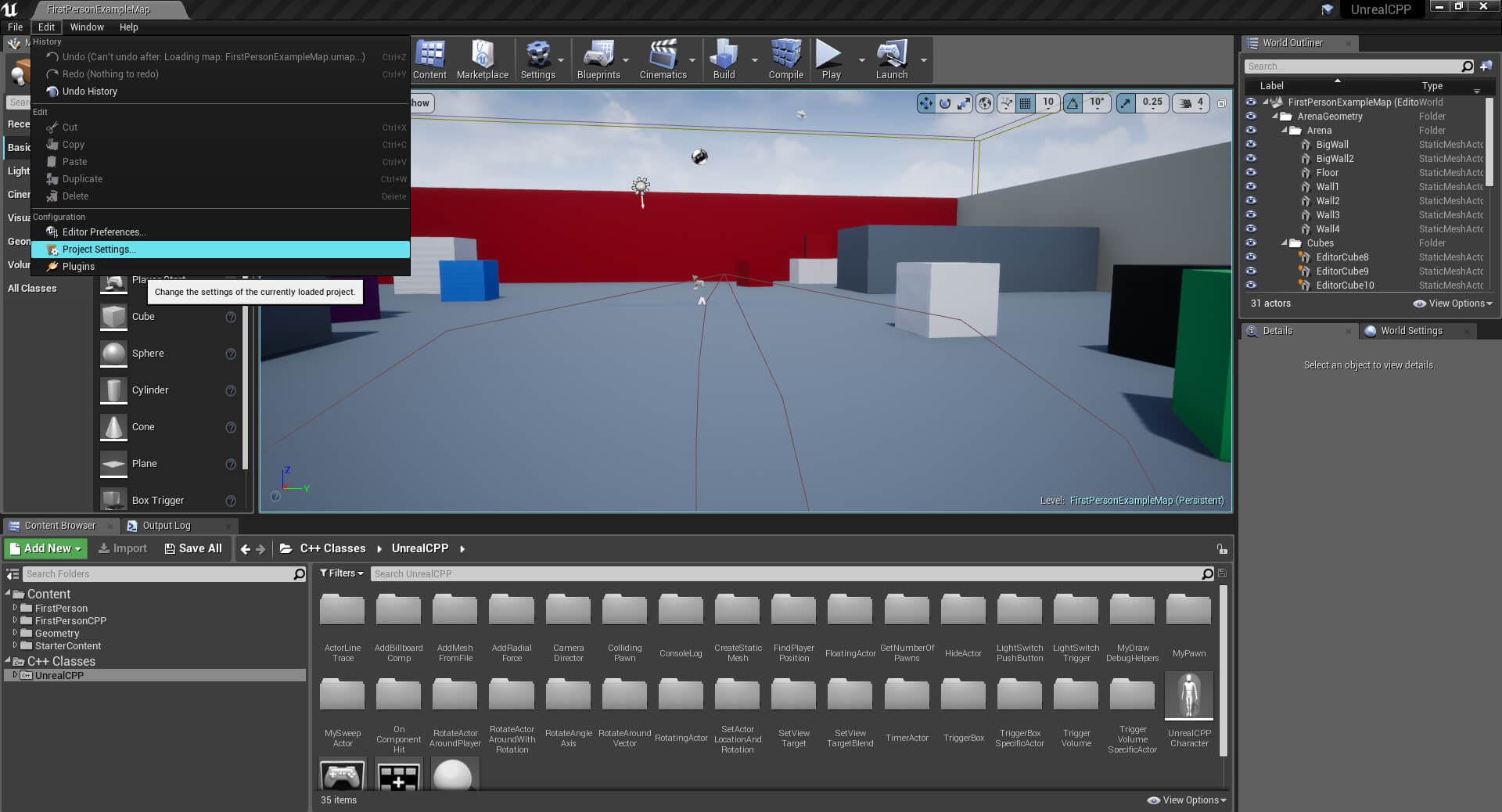

open Edit > Project Settings

go to the Input options and a button press

In our Character.h file add the OnAction method under the OnFire method. My header file in this tutorial is called UnrealCPPCharacter.h, your file might be called something different.

add OnAction to header file

protected:

	/** Fires a projectile. */
	void OnFire();

	// on action
	void OnAction();

Next, in our Character.cpp file we are going to find our SetupPlayerInputComponent function and connect our Action button with our OnAction function. We will make our OnAction function in a second. I connect the controller to the function by BindAction from the PlayerInputComponent. You can learn more about the BindAction function here. In this example I am calling the OnAction function every time the button is Pressed, you can find other EInputEvents here.

add this method in the SetupPlayerInputComponent method

PlayerInputComponent->BindAction("Action", IE_Pressed, this, &AUnrealCPPCharacter::OnAction);

Finally we'll add the OnAction function to the bottom of our script. This will be an extremely simple function that logs a message to the screen.

void AUnrealCPPCharacter::OnAction()
{
	if (GEngine)
	{
        GEngine->AddOnScreenDebugMessage(-1, 5.f, FColor::Red, TEXT("I'm Pressing Action"));
	}
}

Now, your character will log message to the screen whenever they push E.

UnrealCPPCharacter.h

#pragma once

#include "CoreMinimal.h"
#include "GameFramework/Character.h"
#include "UnrealCPPCharacter.generated.h"

class UInputComponent;

UCLASS(config=Game)
class AUnrealCPPCharacter : public ACharacter
{
	GENERATED_BODY()

	/** Pawn mesh: 1st person view (arms; seen only by self) */
	UPROPERTY(VisibleDefaultsOnly, Category=Mesh)
	class USkeletalMeshComponent* Mesh1P;

	/** Gun mesh: 1st person view (seen only by self) */
	UPROPERTY(VisibleDefaultsOnly, Category = Mesh)
	class USkeletalMeshComponent* FP_Gun;

	/** Location on gun mesh where projectiles should spawn. */
	UPROPERTY(VisibleDefaultsOnly, Category = Mesh)
	class USceneComponent* FP_MuzzleLocation;

	/** First person camera */
	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = Camera, meta = (AllowPrivateAccess = "true"))
	class UCameraComponent* FirstPersonCameraComponent;

	// create trigger capsule
	UPROPERTY(VisibleAnywhere, Category = "Trigger Capsule")
	class UCapsuleComponent* TriggerCapsule;

public:
	AUnrealCPPCharacter();

protected:
	virtual void BeginPlay();

public:
	/** Base turn rate, in deg/sec. Other scaling may affect final turn rate. */
	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category=Camera)
	float BaseTurnRate;

	/** Base look up/down rate, in deg/sec. Other scaling may affect final rate. */
	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category=Camera)
	float BaseLookUpRate;

	/** Gun muzzle's offset from the characters location */
	UPROPERTY(EditAnywhere, BlueprintReadWrite, Category=Gameplay)
	FVector GunOffset;

	/** Projectile class to spawn */
	UPROPERTY(EditDefaultsOnly, Category=Projectile)
	TSubclassOf<class AUnrealCPPProjectile> ProjectileClass;

	/** Sound to play each time we fire */
	UPROPERTY(EditAnywhere, BlueprintReadWrite, Category=Gameplay)
	class USoundBase* FireSound;

	/** AnimMontage to play each time we fire */
	UPROPERTY(EditAnywhere, BlueprintReadWrite, Category = Gameplay)
	class UAnimMontage* FireAnimation;

	// declare overlap begin function
	UFUNCTION()
	void OnOverlapBegin(class UPrimitiveComponent* OverlappedComp, class AActor* OtherActor, class UPrimitiveComponent* OtherComp, int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult);

	// declare overlap end function
	UFUNCTION()
	void OnOverlapEnd(class UPrimitiveComponent* OverlappedComp, class AActor* OtherActor, class UPrimitiveComponent* OtherComp, int32 OtherBodyIndex);

protected:

	/** Fires a projectile. */
	void OnFire();

	// on action
	void OnAction();

	/** Handles moving forward/backward */
	void MoveForward(float Val);

	/** Handles stafing movement, left and right */
	void MoveRight(float Val);

	/**
	 * Called via input to turn at a given rate.
	 * @param Rate	This is a normalized rate, i.e. 1.0 means 100% of desired turn rate
	 */
	void TurnAtRate(float Rate);

	/**
	 * Called via input to turn look up/down at a given rate.
	 * @param Rate	This is a normalized rate, i.e. 1.0 means 100% of desired turn rate
	 */
	void LookUpAtRate(float Rate);

protected:
	// APawn interface
	virtual void SetupPlayerInputComponent(UInputComponent* InputComponent) override;
	// End of APawn interface
	FORCEINLINE class USkeletalMeshComponent* GetMesh1P() const { return Mesh1P; }
	/** Returns FirstPersonCameraComponent subobject **/
	FORCEINLINE class UCameraComponent* GetFirstPersonCameraComponent() const { return FirstPersonCameraComponent; }

};

UnrealCPPCharacter.cpp

#include "UnrealCPPCharacter.h"
#include "UnrealCPPProjectile.h"
#include "Animation/AnimInstance.h"
#include "Camera/CameraComponent.h"
#include "Components/CapsuleComponent.h"
#include "Components/SphereComponent.h"
#include "Components/InputComponent.h"
#include "GameFramework/InputSettings.h"
#include "HeadMountedDisplayFunctionLibrary.h"
#include "Kismet/GameplayStatics.h"
#include "MotionControllerComponent.h"

DEFINE_LOG_CATEGORY_STATIC(LogFPChar, Warning, All);

//////////////////////////////////////////////////////////////////////////
// AUnrealCPPCharacter

AUnrealCPPCharacter::AUnrealCPPCharacter()
{
	// Set size for collision capsule
	GetCapsuleComponent()->InitCapsuleSize(55.f, 96.0f);

	// set our turn rates for input
	BaseTurnRate = 45.f;
	BaseLookUpRate = 45.f;

	// Create a CameraComponent
	FirstPersonCameraComponent = CreateDefaultSubobject<UCameraComponent>(TEXT("FirstPersonCamera"));
	FirstPersonCameraComponent->SetupAttachment(GetCapsuleComponent());
	FirstPersonCameraComponent->RelativeLocation = FVector(-39.56f, 1.75f, 64.f); // Position the camera
	FirstPersonCameraComponent->bUsePawnControlRotation = true;

	// Create a mesh component that will be used when being viewed from a '1st person' view (when controlling this pawn)
	Mesh1P = CreateDefaultSubobject<USkeletalMeshComponent>(TEXT("CharacterMesh1P"));
	Mesh1P->SetOnlyOwnerSee(true);
	Mesh1P->SetupAttachment(FirstPersonCameraComponent);
	Mesh1P->bCastDynamicShadow = false;
	Mesh1P->CastShadow = false;
	Mesh1P->RelativeRotation = FRotator(1.9f, -19.19f, 5.2f);
	Mesh1P->RelativeLocation = FVector(-0.5f, -4.4f, -155.7f);

	// Create a gun mesh component
	FP_Gun = CreateDefaultSubobject<USkeletalMeshComponent>(TEXT("FP_Gun"));
	FP_Gun->SetOnlyOwnerSee(true);			// only the owning player will see this mesh
	FP_Gun->bCastDynamicShadow = false;
	FP_Gun->CastShadow = false;
	// FP_Gun->SetupAttachment(Mesh1P, TEXT("GripPoint"));
	FP_Gun->SetupAttachment(RootComponent);

	FP_MuzzleLocation = CreateDefaultSubobject<USceneComponent>(TEXT("MuzzleLocation"));
	FP_MuzzleLocation->SetupAttachment(FP_Gun);
	FP_MuzzleLocation->SetRelativeLocation(FVector(0.2f, 48.4f, -10.6f));

	// Default offset from the character location for projectiles to spawn
	GunOffset = FVector(100.0f, 0.0f, 10.0f);

}

void AUnrealCPPCharacter::BeginPlay()
{
	// Call the base class
	Super::BeginPlay();

	//Attach gun mesh component to Skeleton, doing it here because the skeleton is not yet created in the constructor
	FP_Gun->AttachToComponent(Mesh1P, FAttachmentTransformRules(EAttachmentRule::SnapToTarget, true), TEXT("GripPoint"));

	Mesh1P->SetHiddenInGame(false, true);

}

//////////////////////////////////////////////////////////////////////////
// Input

void AUnrealCPPCharacter::SetupPlayerInputComponent(class UInputComponent* PlayerInputComponent)
{
	// set up gameplay key bindings
	check(PlayerInputComponent);

	// Bind jump events
	PlayerInputComponent->BindAction("Jump", IE_Pressed, this, &ACharacter::Jump);
	PlayerInputComponent->BindAction("Jump", IE_Released, this, &ACharacter::StopJumping);

	// Bind fire event
	PlayerInputComponent->BindAction("Fire", IE_Pressed, this, &AUnrealCPPCharacter::OnFire);

	// Bind action event
	PlayerInputComponent->BindAction("Action", IE_Pressed, this, &AUnrealCPPCharacter::OnAction);

	// Bind movement events
	PlayerInputComponent->BindAxis("MoveForward", this, &AUnrealCPPCharacter::MoveForward);
	PlayerInputComponent->BindAxis("MoveRight", this, &AUnrealCPPCharacter::MoveRight);

	// We have 2 versions of the rotation bindings to handle different kinds of devices differently
	// "turn" handles devices that provide an absolute delta, such as a mouse.
	// "turnrate" is for devices that we choose to treat as a rate of change, such as an analog joystick
	PlayerInputComponent->BindAxis("Turn", this, &APawn::AddControllerYawInput);
	PlayerInputComponent->BindAxis("TurnRate", this, &AUnrealCPPCharacter::TurnAtRate);
	PlayerInputComponent->BindAxis("LookUp", this, &APawn::AddControllerPitchInput);
	PlayerInputComponent->BindAxis("LookUpRate", this, &AUnrealCPPCharacter::LookUpAtRate);
}

void AUnrealCPPCharacter::OnFire()
{
	// try and fire a projectile
	if (ProjectileClass != NULL)
	{
		UWorld* const World = GetWorld();
		if (World != NULL)
		{
			const FRotator SpawnRotation = GetControlRotation();
			// MuzzleOffset is in camera space, so transform it to world space before offsetting from the character location to find the final muzzle position
			const FVector SpawnLocation = ((FP_MuzzleLocation != nullptr) ? FP_MuzzleLocation->GetComponentLocation() : GetActorLocation()) + SpawnRotation.RotateVector(GunOffset);

			//Set Spawn Collision Handling Override
			FActorSpawnParameters ActorSpawnParams;
			ActorSpawnParams.SpawnCollisionHandlingOverride = ESpawnActorCollisionHandlingMethod::AdjustIfPossibleButDontSpawnIfColliding;

			// spawn the projectile at the muzzle
			World->SpawnActor<AUnrealCPPProjectile>(ProjectileClass, SpawnLocation, SpawnRotation, ActorSpawnParams);
		}
	}

	// try and play the sound if specified
	if (FireSound != NULL)
	{
		UGameplayStatics::PlaySoundAtLocation(this, FireSound, GetActorLocation());
	}

	// try and play a firing animation if specified
	if (FireAnimation != NULL)
	{
		// Get the animation object for the arms mesh
		UAnimInstance* AnimInstance = Mesh1P->GetAnimInstance();
		if (AnimInstance != NULL)
		{
			AnimInstance->Montage_Play(FireAnimation, 1.f);
		}
	}
}

void AUnrealCPPCharacter::MoveForward(float Value)
{
	if (Value != 0.0f)
	{
		// add movement in that direction
		AddMovementInput(GetActorForwardVector(), Value);
	}
}

void AUnrealCPPCharacter::MoveRight(float Value)
{
	if (Value != 0.0f)
	{
		// add movement in that direction
		AddMovementInput(GetActorRightVector(), Value);
	}
}

void AUnrealCPPCharacter::TurnAtRate(float Rate)
{
	// calculate delta for this frame from the rate information
	AddControllerYawInput(Rate * BaseTurnRate * GetWorld()->GetDeltaSeconds());
}

void AUnrealCPPCharacter::LookUpAtRate(float Rate)
{
	// calculate delta for this frame from the rate information
	AddControllerPitchInput(Rate * BaseLookUpRate * GetWorld()->GetDeltaSeconds());
}

void AUnrealCPPCharacter::OnAction()
{
	if (GEngine)
	{

        GEngine->AddOnScreenDebugMessage(-1, 5.f, FColor::Red, TEXT("I'm Pressing Action"));

	}
}
