Receive Player Input

December 03, 2017

UE4 Version: 4.18.3

Github Link: https://github.com/Harrison1/unrealcpp/tree/master/MyPawn

For this tutorial we are using the standard first person C++ template with starter content. If you don't know how to add a new actor class to your project, please visit the Add C++ Actor Class post.

The main logic of this code is from Epic's Unreal Engine 4 documentation's tutorial titled Player Input and Pawns and you can see the full tutorial here.

In this example we will add inputs to a pawn and move it around our game. Create a new C++ actor class and call it MyPawn. In the header file we'll create variables for our 'Axis' movements, functions, and bool. Below is the final header code.

MyPawn.h

#pragma once

#include "CoreMinimal.h"
#include "GameFramework/Pawn.h"
#include "MyPawn.generated.h"

UCLASS()
class UNREALCPP_API AMyPawn : public APawn
{
	GENERATED_BODY()

public:
	// Sets default values for this pawn's properties
	AMyPawn();

protected:
	// Called when the game starts or when spawned
	virtual void BeginPlay() override;

public:
    // Called every frame
    virtual void Tick(float DeltaSeconds) override;

    // Called to bind functionality to input
    virtual void SetupPlayerInputComponent(class UInputComponent* InputComponent) override;

    UPROPERTY(EditAnywhere)
    USceneComponent* OurVisibleComponent;

    // Input functions
    void Move_XAxis(float AxisValue);
    void Move_YAxis(float AxisValue);
    void StartGrowing();
    void StopGrowing();

    // Input variables
    FVector CurrentVelocity;
    bool bGrowing;
};

In editor let's create an Action mapping called Grow and bind it to the G key. Then make two Axis mappings and call them MoveX and MoveY. Set the axis scales to 1 and -1 respectively.

// TODO get images and scales

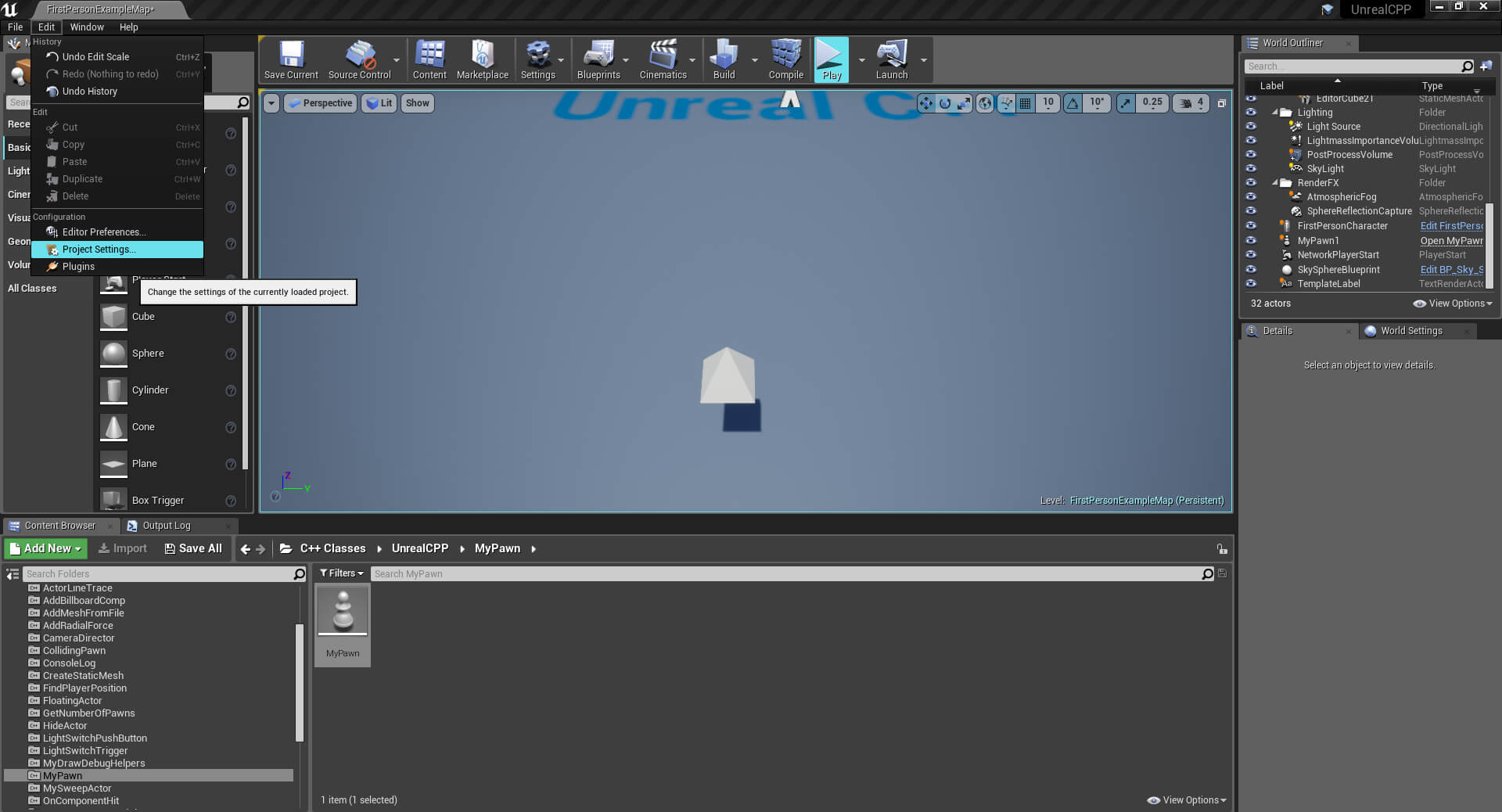

project settings

project settings

add inputs

new pawn movement comp

  1. MoveX
    I: Scale 1.0
    K: Scale -1.0

  2. MoveY
    J: Scale -1.0
    L: Scale 1.0

  3. Grow
    G

In the .cpp file make sure to #include Camera/CameraComponent.h, Components/InputComponent.h, and Components/StaticMeshComponent.h.

include files

#include "MyPawn.h"
#include "Camera/CameraComponent.h"
#include "Components/InputComponent.h"
#include "Components/StaticMeshComponent.h"

Next, we'll set the default values. First, we want automatically possess the player by doing AutoPossessPlayer = EAutoReceiveInput::Player0;. Next we create and add a visual component and camera to our dummy RootComponent.

set default values

// Sets default values
AMyPawn::AMyPawn()
{
    // Set this pawn to call Tick() every frame.  You can turn this off to improve performance if you don't need it.
    PrimaryActorTick.bCanEverTick = true;

    // Set this pawn to be controlled by the lowest-numbered player
    AutoPossessPlayer = EAutoReceiveInput::Player0;

    // Create a dummy root component we can attach things to.
    RootComponent = CreateDefaultSubobject<USceneComponent>(TEXT("RootComponent"));
    // Create a camera and a visible object
    UCameraComponent* OurCamera = CreateDefaultSubobject<UCameraComponent>(TEXT("OurCamera"));
    OurVisibleComponent = CreateDefaultSubobject<UStaticMeshComponent>(TEXT("OurVisibleComponent"));
    // Attach our camera and visible object to our root component. Offset and rotate the camera.
    OurCamera->SetupAttachment(RootComponent);
    OurCamera->SetRelativeLocation(FVector(-250.0f, 0.0f, 250.0f));
    OurCamera->SetRelativeRotation(FRotator(-45.0f, 0.0f, 0.0f));
    OurVisibleComponent->SetupAttachment(RootComponent);

}

In the Tick function we'll want to always check the state of growing for the pawn and always position the pawn correctly. Every frame we get the VisualComponent's scale and if the player is pressing G we will add DeltaTime to the scale. When the key is not pressed, the scale will shrink back to normal size all while clamping it's size so it doesn't go above 2 (double the size) or below 1 (initial size).

Tick function

// Called every frame
void AMyPawn::Tick(float DeltaTime)
{
	Super::Tick(DeltaTime);


    // Handle growing and shrinking based on our "Grow" action
    {
        float CurrentScale = OurVisibleComponent->GetComponentScale().X;
        if (bGrowing)
        {
            // Grow to double size over the course of one second
            CurrentScale += DeltaTime;
        }
        else
        {
            // Shrink half as fast as we grow
            CurrentScale -= (DeltaTime * 0.5f);
        }
        // Make sure we never drop below our starting size, or increase past double size.
        CurrentScale = FMath::Clamp(CurrentScale, 1.0f, 2.0f);
        OurVisibleComponent->SetWorldScale3D(FVector(CurrentScale));
    }

    // Handle movement based on our "MoveX" and "MoveY" axes
    {
        if (!CurrentVelocity.IsZero())
        {
            FVector NewLocation = GetActorLocation() + (CurrentVelocity * DeltaTime);
            SetActorLocation(NewLocation);
        }
    }

}

Now, let's bind our actions and axes to our functions. We'll create the functions in the next steps.

Bind Input

// Called to bind functionality to input
void AMyPawn::SetupPlayerInputComponent(UInputComponent* PlayerInputComponent)
{
	Super::SetupPlayerInputComponent(InputComponent);

    // Respond when our "Grow" key is pressed or released.
    InputComponent->BindAction("Grow", IE_Pressed, this, &AMyPawn::StartGrowing);
    InputComponent->BindAction("Grow", IE_Released, this, &AMyPawn::StopGrowing);

    // Respond every frame to the values of our two movement axes, "MoveX" and "MoveY".
    InputComponent->BindAxis("MoveX", this, &AMyPawn::Move_XAxis);
    InputComponent->BindAxis("MoveY", this, &AMyPawn::Move_YAxis);

}

Create two axis functions that will handle moving our Pawn. These functions will clamp movement between 1 and -1 and move us at a rate of 100 unreal units.

axis functions

void AMyPawn::Move_XAxis(float AxisValue)
{
    // Move at 100 units per second forward or backward
    CurrentVelocity.X = FMath::Clamp(AxisValue, -1.0f, 1.0f) * 100.0f;
}

void AMyPawn::Move_YAxis(float AxisValue)
{
    // Move at 100 units per second right or left
    CurrentVelocity.Y = FMath::Clamp(AxisValue, -1.0f, 1.0f) * 100.0f;
}

Next, we'll create two functions that simpley toggle our bGrowing bool.

growing functions

void AMyPawn::StartGrowing()
{
    bGrowing = true;
}

void AMyPawn::StopGrowing()
{
    bGrowing = false;
}

Compile the code. And now drag and drop your newly created pawn into your game and start moving it around.
